IO Modules

Application

•  Remote Monitoring System (RMS).
•  Production and process monitoring.
•  Utilities monitoring.
•  Condition monitoring.
•  Environment monitoring.
•  Industrial Smart grid.
•  Solar grid.
•  Cold storage monitoring.
•  District metering.
•  Water treatment.
•  Generator monitoring.
•  Green House.
•  Warning message in case of calamities.
•  Standard SCADA Applications.

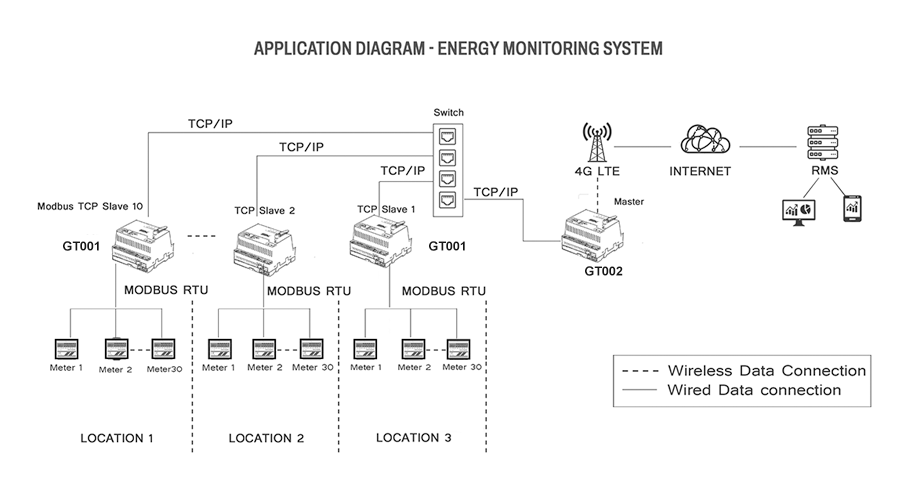

Application Diagram

Features

•  12 x isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16-bit resolution and 860 SPS.
•  4x Isolated Digital Input 24V.
•  3x Isolated Digital Output 24V.
•  1x Relay (NO & C).
•  1x Isolated RS485 for MODBUS RTU Communication.
•  1x Isolated Ethernet 10 / 100Mbps MODBUS TCP Communication.
•  1x USB-Device Interface for Configuring, Monitoring and Download.
•  1x Wi-Fi Wireless Communication.
•  Configure and Read Multiple Slave IDs, Selectable Input Register Holding Register & Coil.
•  Configurable Data Type and Conversion Method (INT, Long INT, FLOAT, Double Float & Raw Hex) UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC).
•  Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
•  Configurable Scaling factor enabling option for Analog channel.
•  Configurable Wi-Fi Interface.
•  Configurable Data Transferring Protocol JSON / MQTT and FTP.
•  Support secure communication SSL.
•  Auto Maintain socket/server connection.

Edge Computing Modules

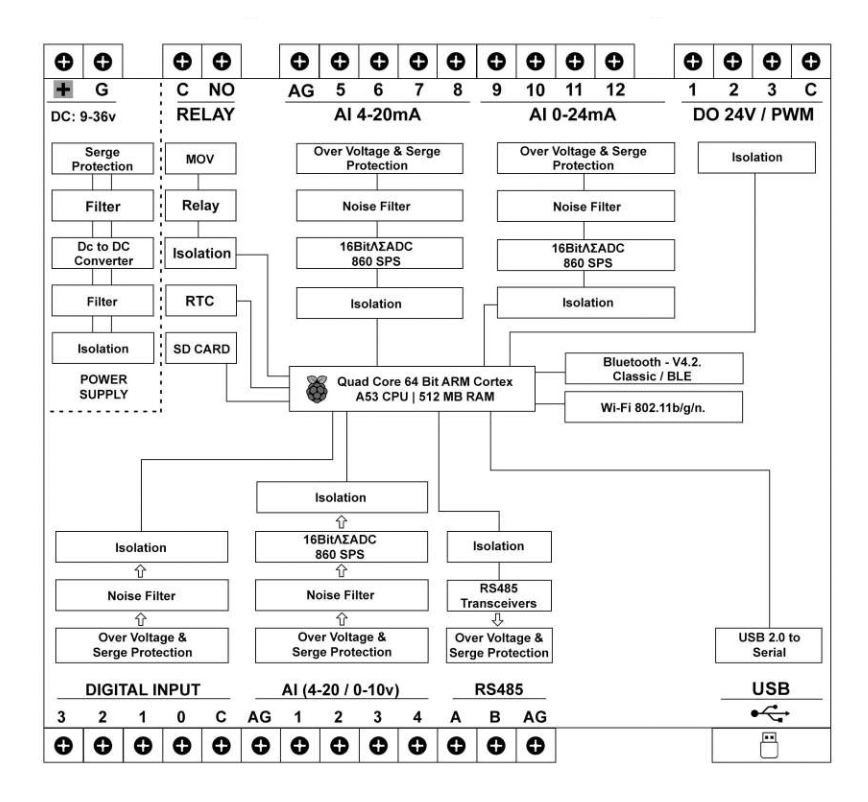

Architecture Diagram

Application

•  Production and process monitoring.
•  Utilities monitoring.
•  Condition monitoring.
•  Environment monitoring.
•  Industrial Smart grid.
•  Leakage detection.
•  District metering.
•  Water treatment.
•  Generator monitoring.
•  Green House.
•  Warning message in case of calamities.
•  Standard SCADA Applications.

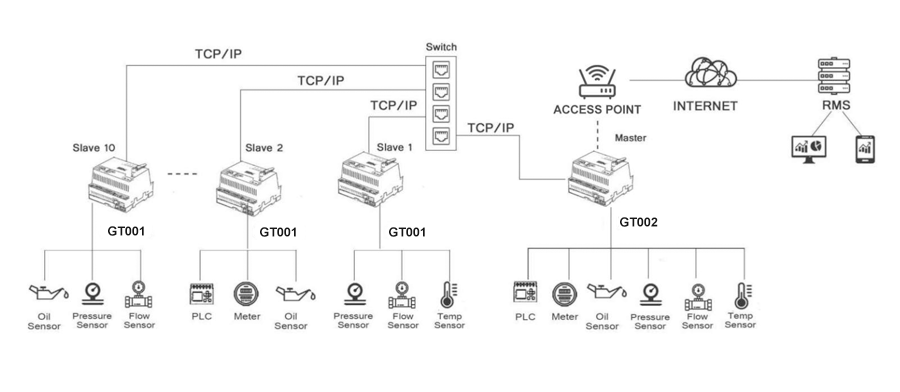

Application Diagram

Features

•  8x Isolated Analog Input Channel 0-10V, 0-24v, 4-20mA. 16 Bit Resolution and 860SPS.
•  2x Analog Output (AO) 0-10v.
•  2x 0-20mA transmitter.
•  4x Isolated Digital Input 24v.
•  4x Isolated Digital Output / PWM 24v.
•  2x Relay (NO & C).
•  1x Isolated RS485 for MODBUS RTU Communication.
•  1x Isolated RS232 communication port.
•  1x USB-Device Interface for Configuring, Monitoring & Download.
•  1x Wi-Fi & Bluetooth Wireless Communication.
•  Industrial Grade Design - Isolated & Protected IO & EMC / EMI Compliance.
•  Protocol JSON / MQTT and FTP.
•  Support secure communication SSL.
•  16 GB SD Card Storage.
•  Support most of the cloud platforms including Microsoft Azure & AWS etc.
•  Power Supply - DC 9-36V.

Long Range RF Communication Modules

Application

•  Supply Chain Management.
•  Inventory and cycle counting.
•  Asset management.
•  E-parking, garbage trucks.
•  Identity management and access control.
•  Event Management.
•  Inspections and code enforcement.
•  Toll Gates.
•  Document and folder tracking.
•  Patient location tracking.
•  Pharmaceutical Industry.
•  Library Management.
•  Retail and Logistics.
•  Maintenance and Repair.
•  Oil and Gas Industry.

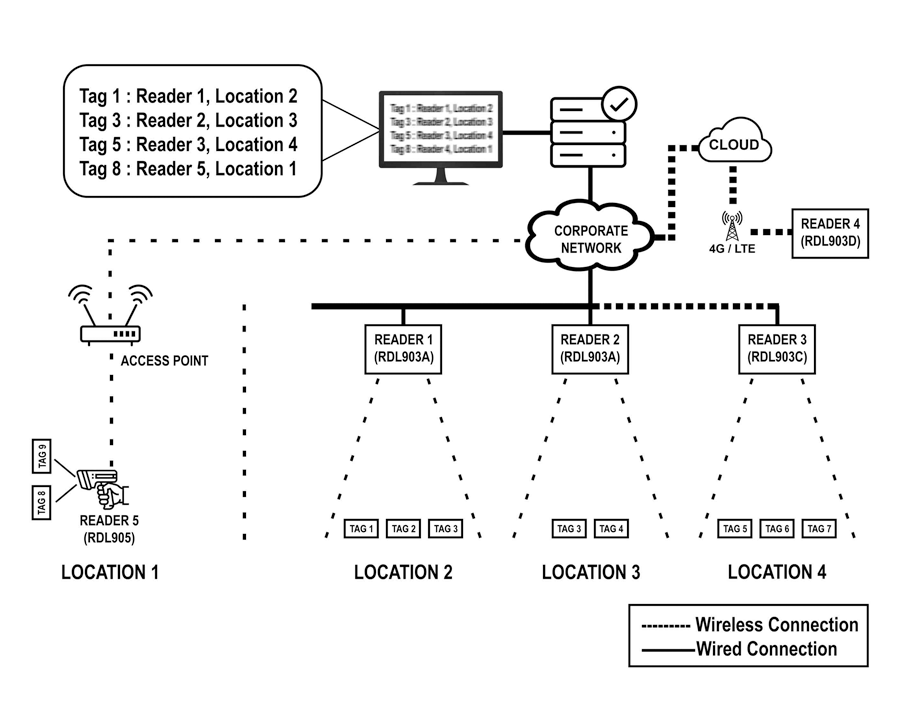

Use Case

Features

•  Software SDK / API help in faster application development.
•  Support Ethernet, Wi-Fi, 4G/LTE RS232, RS485, Wiegand communication Interface*.
•  Supports TCP/IP, HTTP & MQTT protocol and faster data processing*.
•  Support covering larger area over TCP/IP wired / wireless network environment.
•  Aluminum casting / IP65 rated housing applies to all weather industrial scenarios.
•  Deployment / wiring made easier with integrated Reader and antenna design.
•  Various SDK (.NET, Java, Python and Android) for rapid implementation of large projects.
•  Multiple reader types available, including handheld, wall-mount and desktop models.
•  Reading range supports 50 cm to 15 meters**.
•  Frequency 902-926 MHz , 865-868M Hz.
•  Read rate 200 count per second.
•  Adjustable Antenna (circular polarization) Range 3 DBi to 12 DBI and RF power up to 30 dBm*.
•  Supported ISO18000-6C(EPC Gen2).
•  Working Voltage range DC 9 to 24V.

Custom Control Boards

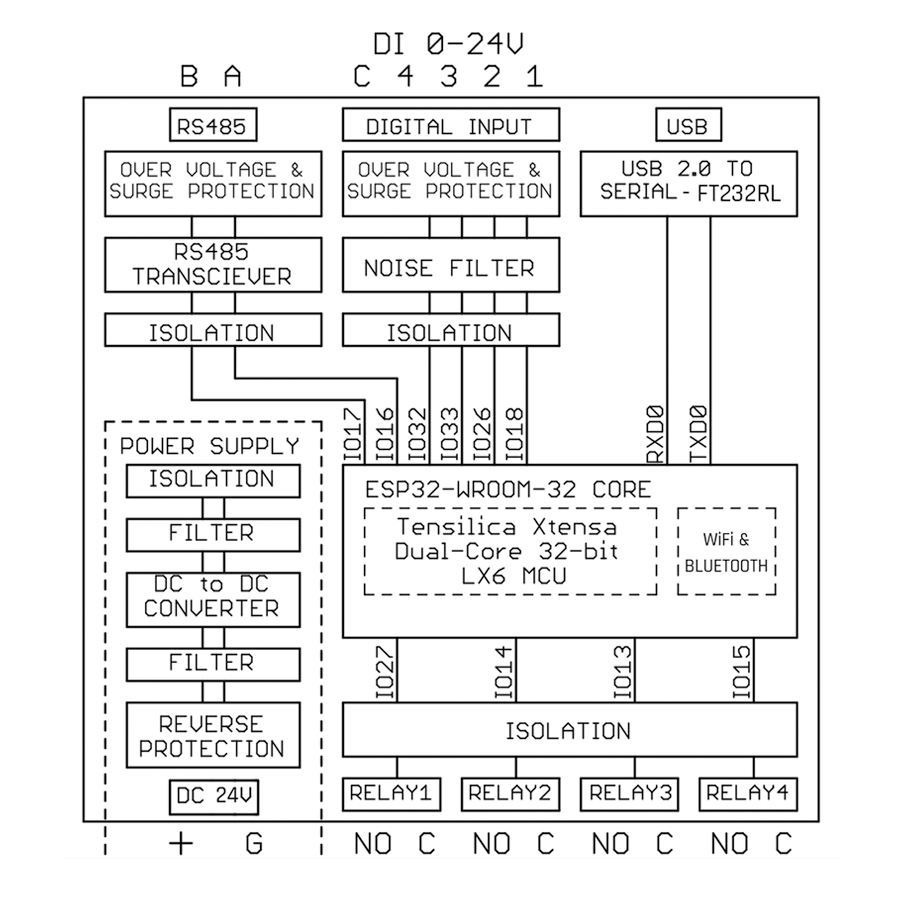

Architecture Diagram

Application

•  Production and process monitoring.
•  Utilities & Energy monitoring.
•  Alarm & Automated Task application.
•  Condition monitoring.
•  Fire & Safety.
•  Andon System.
•  District metering.
•  Generator monitoring.
•  Standard PLC & SCADA Applications.

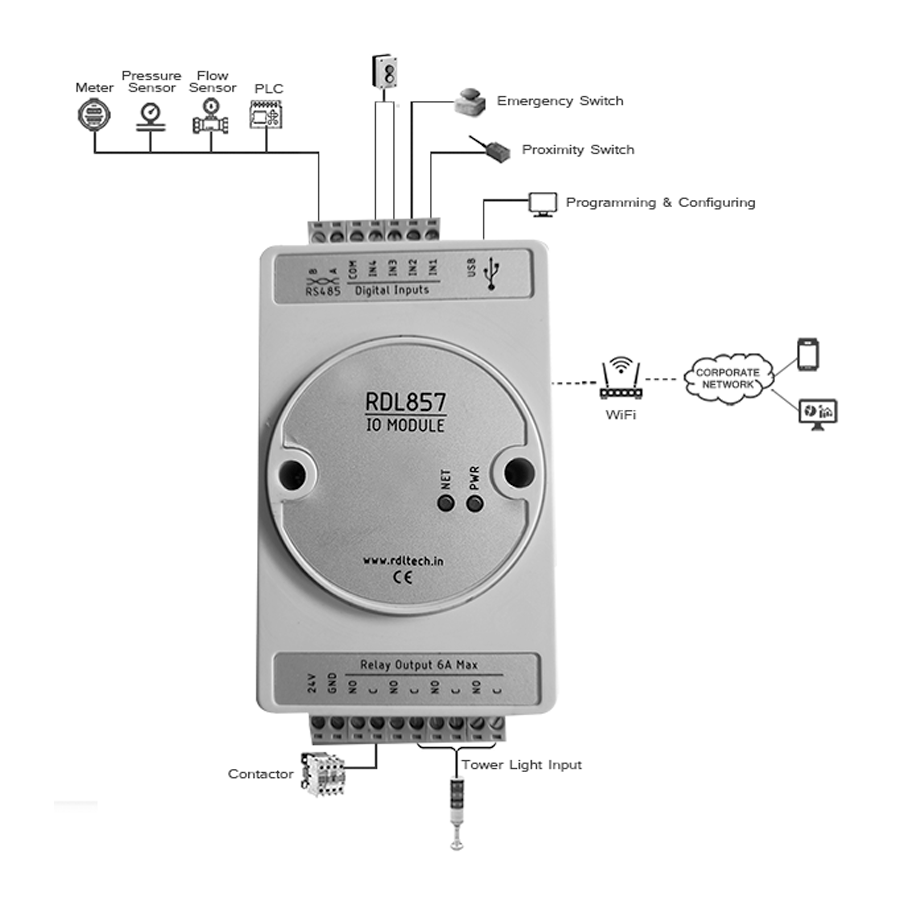

Application Diagram

Features

•  Open-source Hardware ESP32 dual-core 32-bit up to 240 MHz, Flash 16 MB.
•  Support most of the open-source platforms for Custom Programming.
•  The device offers multiple industrial protocols like MODBUS RTU, MODBUS TCP, JSON, MQTT, and FTP and supports secure communication SSL.
•  Industrial Grade Design - Isolated & Protected IO & EMC / EMI compliance.
•  Support most of the cloud platforms including Microsoft Azure & AWS etc.
•  OTA Firmware upgrade supported.
•  Support communication over WiFi, Bluetooth, and Modbus RTU.
•  Isolated & protected 4x 24 V Digital Input & 4x 7A Relay Contact.
